KE Application

Overview

KE application is an application that uses the ECOS system to apply high-accuracy measurements by vision, and find defects on the surface of objects.

High accuracy dimension measurement

Dimension measurement is the process of determining and recording numerical values or symbols for a characteristic or object based on a standard unit. High accuracy refers to the closeness of measurements to the actual values of the objects being measured.

Some commonly used measuring instruments include:

• Calipers
• Panme

In addition, a current trend in measurement is using vision-based measurement. This method employs cameras and image processing to measure and determine the dimensions of objects. Measurement deviations are only at the level of a few pixels, and the higher the pixel density, the more accurate the results.

	Vision Measurement	Panme	Caliper
Contact	Non-contact	Requires contact	Requires contact
Speed	Fast	Slow	Slow
Batch Inspection	Easy to inspect	Not suitable	Not suitable
Accuracy	High	High	Low

Object

In this application, it is necessary to measure the diameters of the holes with specifications of 2.9 and 1.8 on the object. Additionally, the distance between the pins and defects on the top also need to be inspected.

The drawing of the object to be measured

Model

Station 1: Measure the 1.8 hole and check for bent pins

Identify the 1.8 hole and measure the diameter, and also identify the pins to check for bent pins.

In this process, we divide it into 2 parts: find the diameter of the hole in the center, and the pins. For the hole in the center, use houghCircle directly on the gray + blur processed image. As for finding the pins, we need to process the contrast and brightness to determine the pins.

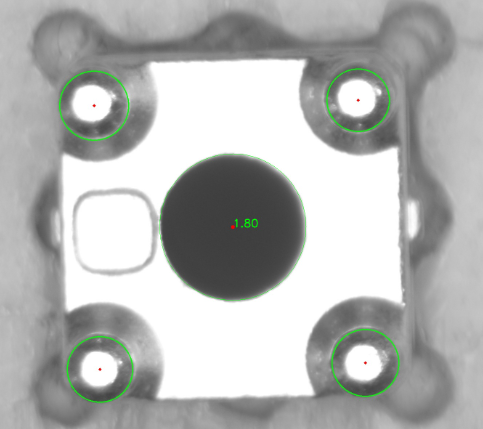

Measure 1.8

Station 2: Measure the distance between pins

Need to find the exact center of the pins to measure and when measuring many times, the error is low.

Combine image processing parts such as changing contrast & brightness, Canny, Dilate, approxPolyDP, minEnclosing to handle pin finding.

Processing to identify pins

Station 3: Check for defects on the object surface.

Using the object detection model (YOLO8), combined with image processing to train and check for defects on the object surface.

Defect at the top

Staion 4: Measure the 2.9 hole on the top of the object.

Apply image processing such as crop to focus on the object more, use scale up to increase pixel density, adjust image contrast and brightness parameters and apply houghCircle to find the required circle. Different processing parts are combined to create high accuracy when measuring the diameter of the hole at the top.

Processing to determine diameter

Main model

Is the part that combines stations to build a final model for the application.

Run test:

With each station

Use the corresponding command for each station as below::

python first_station.py --opt opt.json --input_path input_path.jpeg  --output output.jpeg
python second_station.py --opt opt.json --input_path input_path.jpeg  --output output.jpeg
python third_station.py --opt opt.json --input_path input_path.jpeg  --output output.jpeg
python fourth_station.py --opt opt.json --input_path input_path.jpeg  --output output.jpeg

Với:

• opt: path to the opt.json file
• input_path: path to the file to check.
• output: path to save the resulting image.

Test main model

python test.py --opt opt.json --output_dir output/

Với:

• opt: path to the opt.json file
• output_dir: path to the directory that will contain the resulting image.
